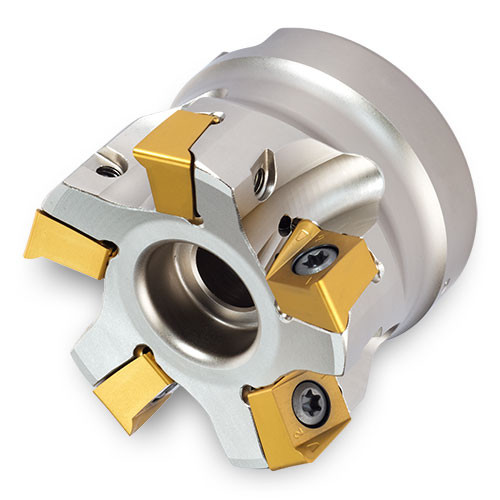

TJ5G-20R01
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1-3/4″ OAL × 0.41″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.41″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | 32-63 Ra finish w/ integrated wiper (WEP) 63-125 Ra finish w/o wiper | Country of Origin | USA |
Shipping Info
Package Weight
2.13
