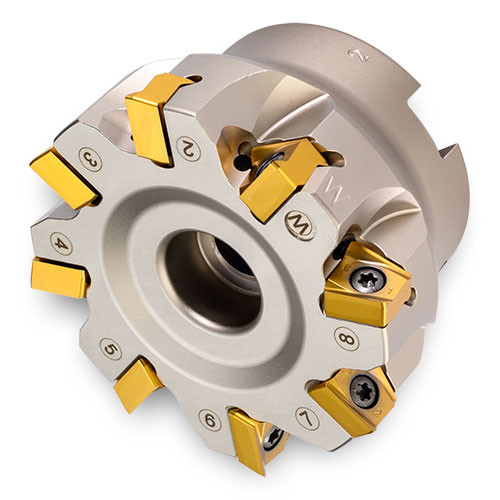

TA3Q-30R01
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.02″ LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.484″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.02″ | Application | | Facing | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Long crowned wiper produces 3-15 Ra surface finish Stepped insert orientation alleviates axial & radial forces Can mill up to 90° shoulder Carbide, CBN & PCD insert offering for a wide variety of materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
3.097
