DP6C-20R01

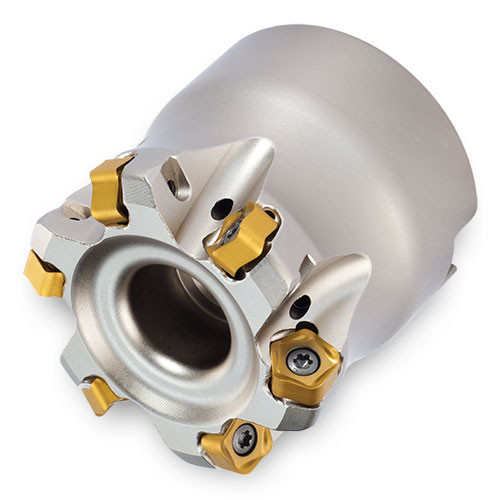

Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.059″ LOC ; 7 Inserts ; 26 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.677″ | Ramping Angle Maximum (RMPX) | 0.7 Degrees |
| Cutting Diameter Maximum (DCX) | 2″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.059″ | Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 26 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Positive rake and reinforced edge offer low cutting forces and smooth machining in deep cavities High ramping capability Great price-per-edge economy! | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.072
