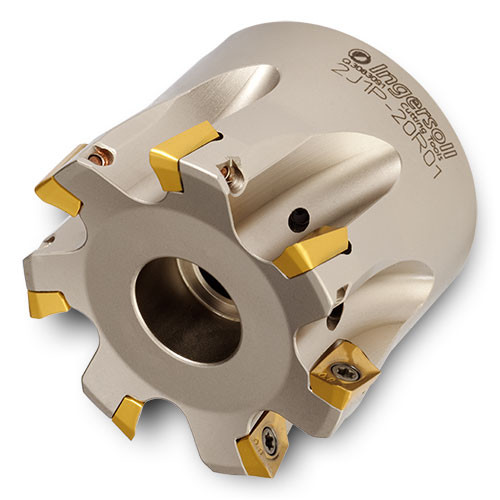

2J1P063R01
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 9 mm LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 63 mm | Arbor Style | A |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Helical Interpolation | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Family Description | Insert radii: 0.4, 0.8, 1.6, 2.0 & 3.1 mm R | Country of Origin | Germany |
Shipping Info
Package Weight
1.213
