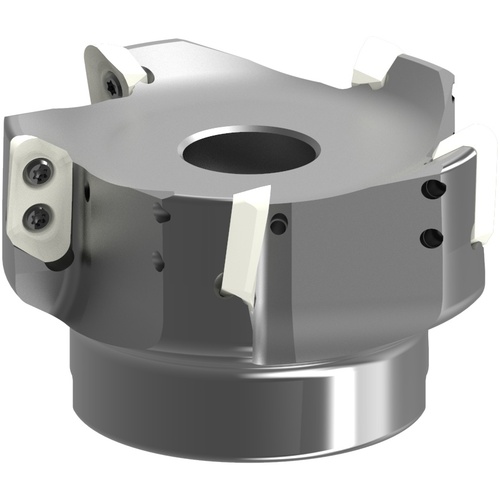

AXD7000R10005DB MILL
Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 20.4 mm LOC ; 90 Degrees ; Series AXD7000
| Cutting Diameter (DC/DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 100 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 20.4 mm | Functional Length (LF) | 63 mm |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 3 Degrees | Series/List # | AXD7000 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
