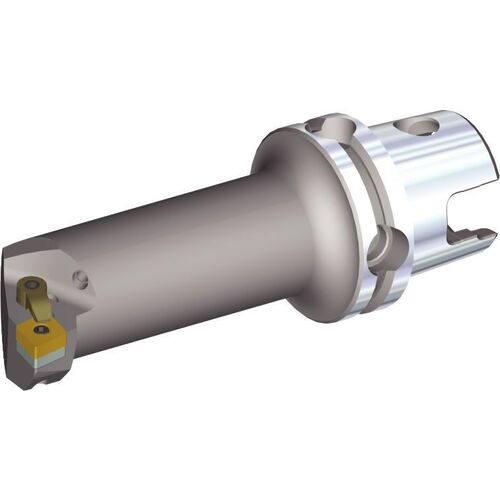

KM63TSS50KMCLNL12 KM63TS BORING BAR
Turning Toolholder; 164.95 mm OAL x #63 Shank Dia. × 104.4 mm LH ; Left Hand ; Steel
Additional Tariff Surcharge of 8.5 %
| Protruding Length (LPR) | 104.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 164.95 mm | Shank Type | KM |
| Head Length (LH) | 104.4 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Connection Diameter Machine Side (DCONMS) | #63 | Rake Angle Radial (GAMF) | -8 Degrees |
| Minimum Bore Diameter (DMIN) | 63 mm | Weight of Item (WT) | 4.42467234 |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Master Insert Identification (MIID) | Diamond 80 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
4.4246
