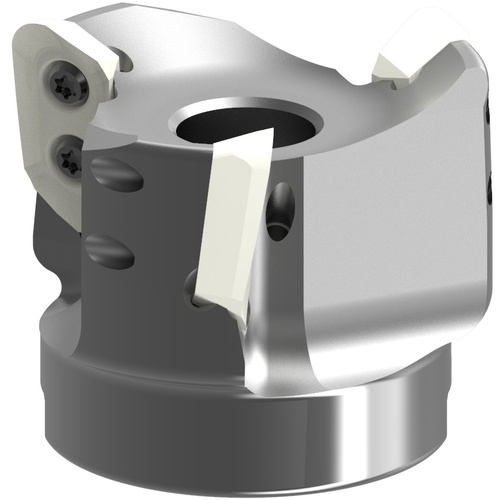

AXD7000-063A03RB MILL
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 20.4 mm LOC ; 90 Degrees ; Series AXD7000_MM
| Cutting Diameter (DC/DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 63 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 20.4 mm | Functional Length (LF) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Series/List # | AXD7000_MM |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
