C6ATEON00130-25-CHP

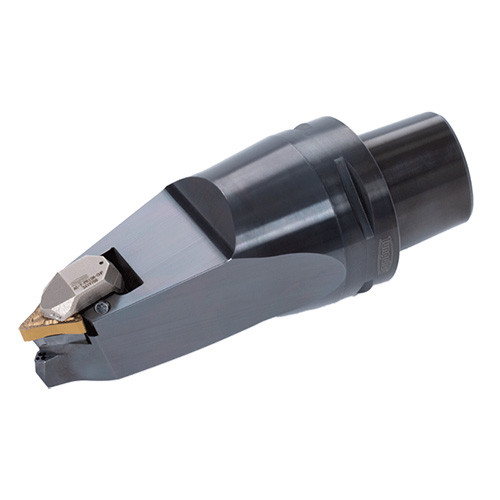

Turning Toolholder; 130 mm OAL × 63 mm Shank Dia. ; Neutral ; Steel

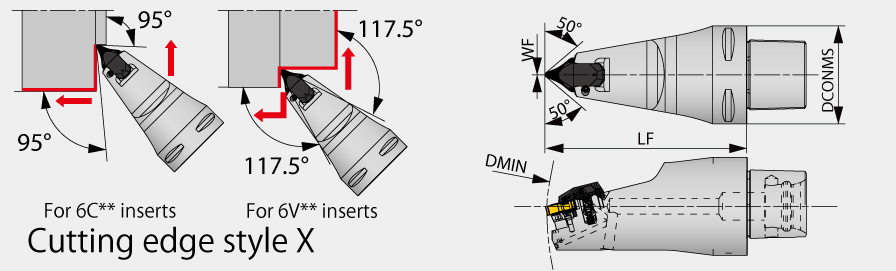

| Overall Length (OAL) | 130 mm | Cutting Direction (HAND) | Neutral |
| Functional Length (LF) | 130 mm | Master Insert Identification (MIID) | 6C-TOMG2506** |
| Functional Width (WF) | 0 mm | Application | | Face contact interface | For Triangular insert | |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 190 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder, with 50deg approach angle, for negative 80deg/70deg rhombic inserts | Country of Origin | Japan |
| Remarks | *Products are made by license; PrimeTurning is a proprietary technology of AB Sandvik Coromant. |
Shipping Info
Package Weight
0
