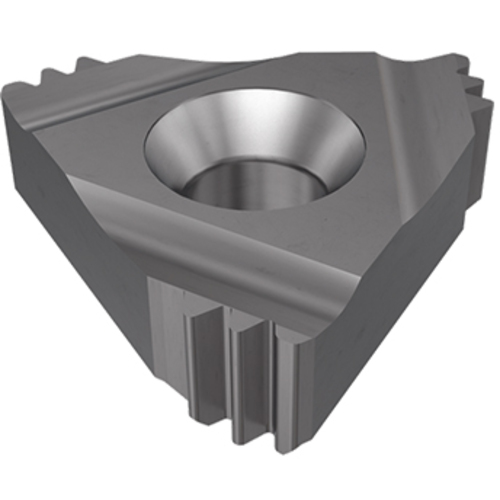

27ER 11.5 NPT 3M-Q IC908
Laydown Threading Insert ; 11.5 TPI ; 1.063″ Length ; 5/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Application | | External Threading | |

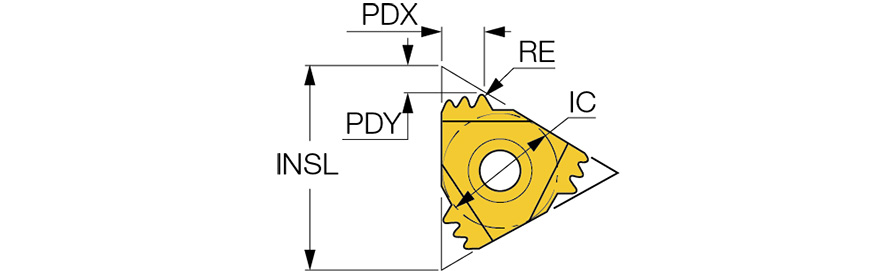

| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 1.063″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11.5 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0035″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NPT60 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.1299″ |
Product Features
| Family Description | External NPT (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info For threading between walls use GRIP-type insert TIP-NPT National Pipe Threads ANSI/ASME B1.20.1-1983 |
Shipping Info
Package Weight
26.2
