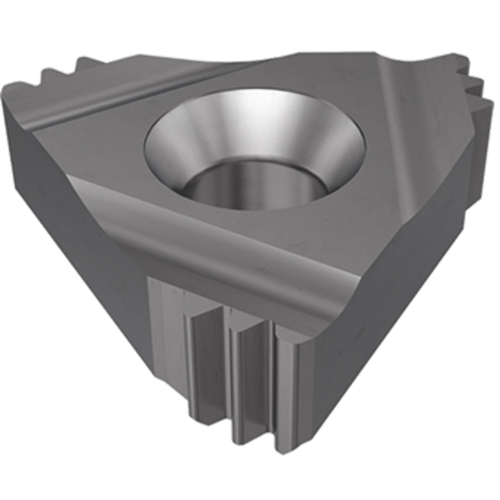

16ER 0.75 ISO 3M-Q IC908
Laydown Threading Insert ; 0.75 mm TP ; 0.63″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN

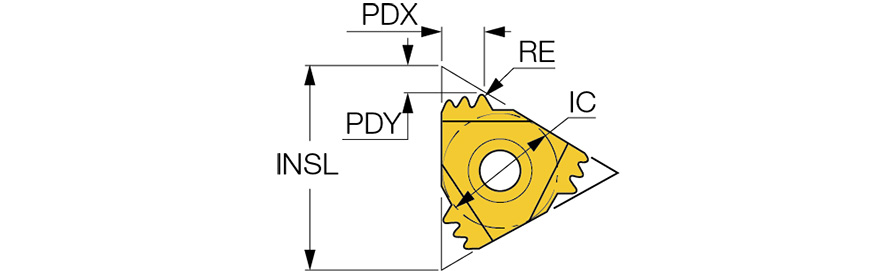

| Thread Standard | THFT | | Application | | External Threading | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.75 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0047″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0551″ |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6g) Laydown Threading Inserts for General Applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, see More Info For threading between walls use GRIP-type inserts TIP-ISO class: 6g |
Shipping Info
Package Weight
5.8
