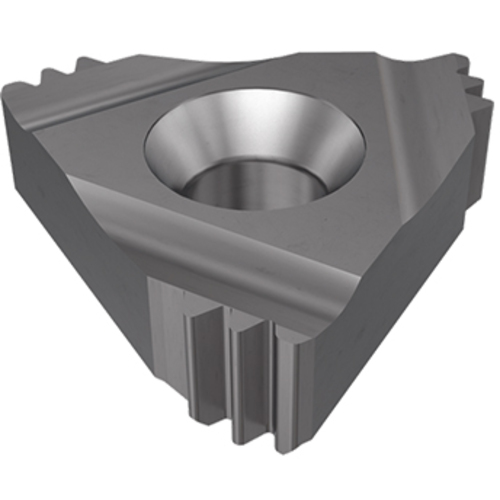

22ER 14 W 3M-Q IC908
Laydown Threading Insert ; 14 TPI ; 0.866″ Length ; 1/2″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Application | | External Threading | |

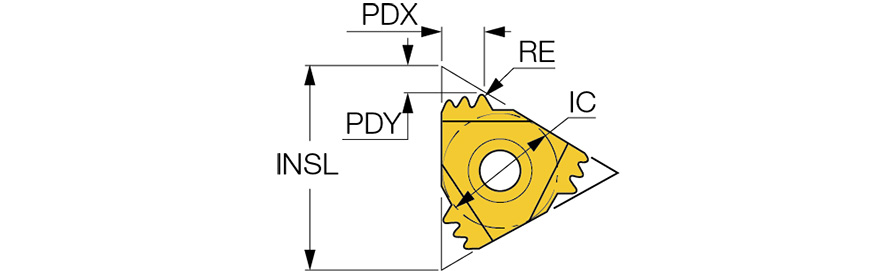

| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0091″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | WH55 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.1024″ |
Product Features
| Family Description | External Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info For threading between walls use GRIP-type insert TIP-BSW Tolerance: Medium Class |
