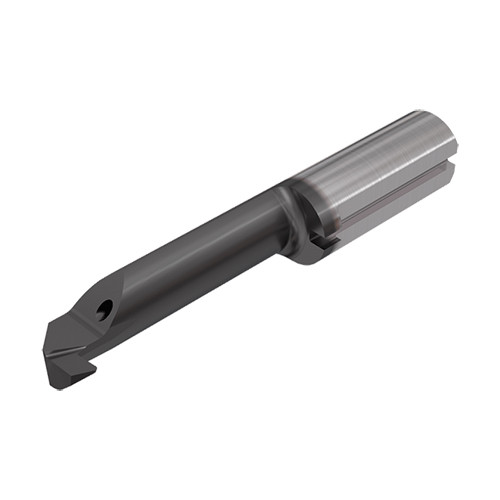

PICJ RBTD50R20-20 IC908
Tool; 0.197″ Shank Dia. × 0.059″ CW × 0.039″ Max Depth × 1.378″ OAL × 0.0079″ Corner Radius ; Carbide ; TiAlN ; IC908

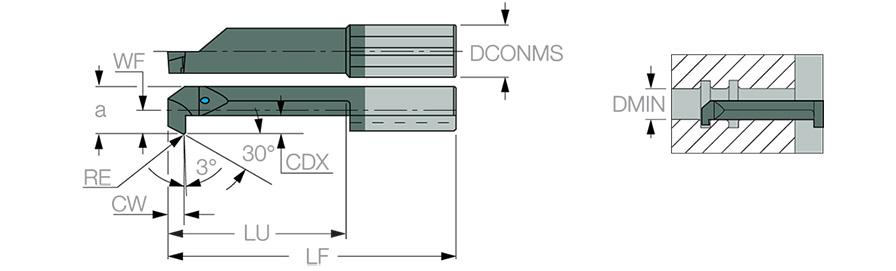

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Application | | Int. Back Boring and Profiling | |
| Cutting Width (CW) | 0.059″ | Tool Type | Solid Carbide Turn Tool |
| Cutting Depth Maximum (CDX) | 0.039″ | Minimum Bore Diameter (DMIN) | 0.197″ |
| Overall Length (OAL) | 1.378″ | Front End Width (a) | 0.173″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Inserts for internal back turning | Country of Origin | Israel |
| Remarks | Specify right- or left-hand bars PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only |
Shipping Info
Package Weight
10
