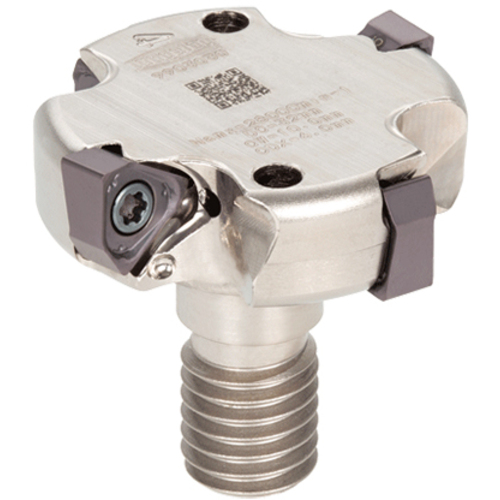

HSW06R032M10-02W10.0C

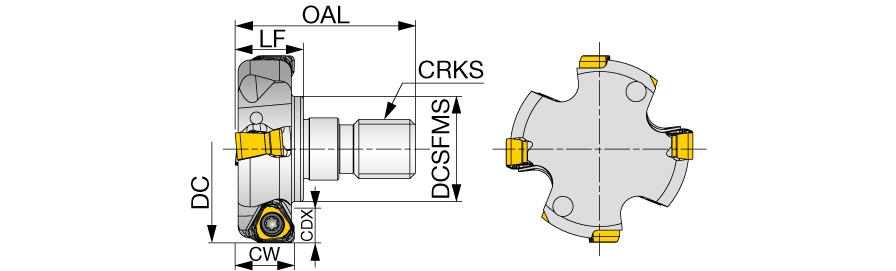

| Cutting Diameter (DC) | 1.2598″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.394″ | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 0.24″ | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M10 | Functional Length (LF) | 0.453″ |
| Overall Length (OAL) | 1.201″ | Master Insert Identification (MIID) | WNGU060308TN-MJ |
| Application | | Slot Milling | |
Product Features
| Family Description | Slot mill with TungFlex connection | Country of Origin | JAPAN |
| Remarks | For how to assemble the cutter body to the shank, click on "More Info". |
Shipping Info
Package Weight
0.000
Related Documentation

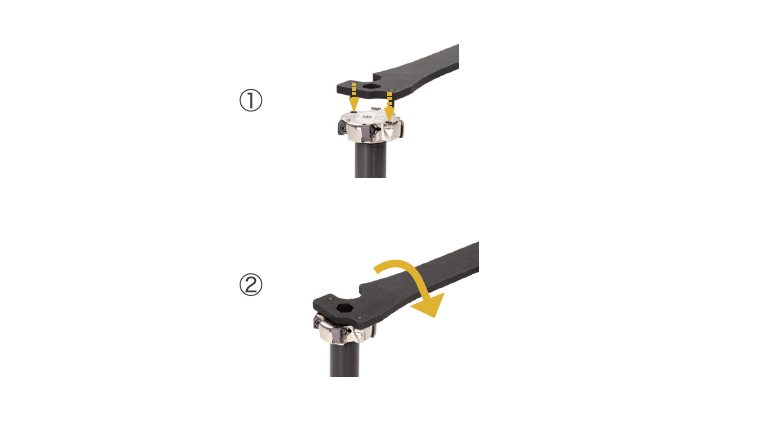

[Modular head] @(1) Insert the pins to the holes on the cutter body. @(2) Grip the handle and rotate to clamp. A hex torque wrench may be used as an alternative torque method. In this case, insert the Allen key in the hexagonal hole on the dedicated wrench and rotate.
