HPA06R020MM10-03

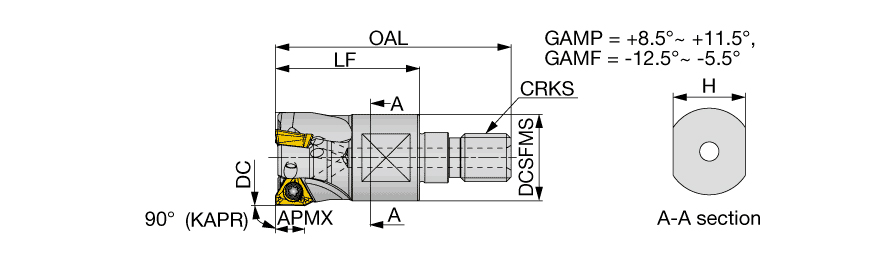

Indexable End Mill; 0.7874″ Dia. × 0.236″ LOC × 0.709″ Shank Dia. × 1.929″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.7874″ | Functional Length (LF) | 1.181″ |
| Cutting Diameter (DC) | 0.7874″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.236″ | Body Material | Steel |
| Overall Length (OAL) | 1.929″ | Connection Retention Knob Thread Size (CRKS) | M10 |
| Application | | Shoulder Milling | | Shank Height (H) | 0.591″ |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Cutting Diameter Maximum (DCX) | 0.7874″ |
| Master Insert Identification (MIID) | TOMT06... |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.026
