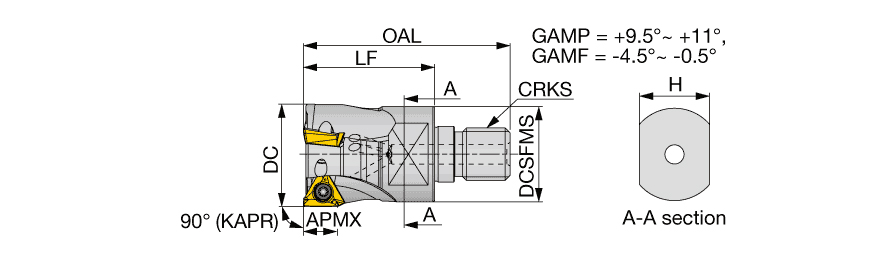

HPA10R032MM16-03
Indexable End Mill; 1.2598″ Dia. × 0.394″ LOC × 1.142″ Shank Dia. × 2.48″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.2598″ | Functional Length (LF) | 1.575″ |
| Cutting Diameter (DC) | 1.2598″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.394″ | Body Material | Steel |
| Overall Length (OAL) | 2.48″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | Shoulder Milling | | Shank Height (H) | 0.866″ |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Cutting Diameter Maximum (DCX) | 1.2598″ |
| Master Insert Identification (MIID) | TOMT10... |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.617
