HWD07R020MM10-04

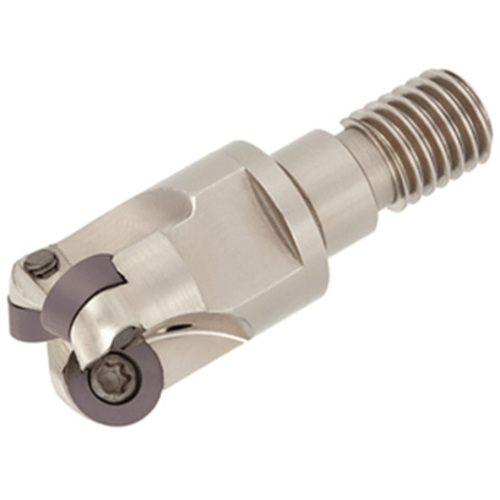

Indexable End Mill; 0.5118″ Dia. × 0.138″ LOC × 0.701″ Shank Dia. × 1.929″ OAL

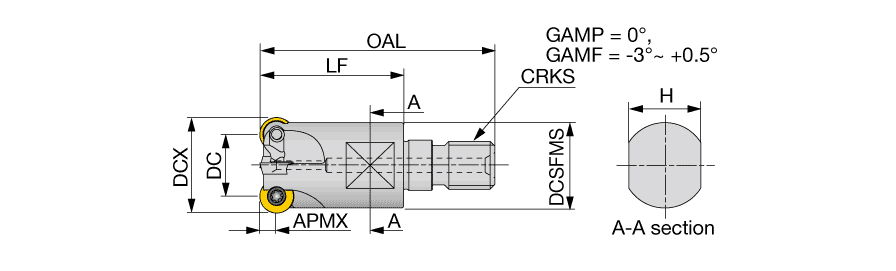

| Cutting Diameter (DC/DCX) | 0.5118″ | Functional Length (LF) | 1.181″ |
| Cutting Diameter (DC) | 0.5118″ | Tool Type | Corner rounding endmills |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.138″ | Body Material | Steel |
| Overall Length (OAL) | 1.929″ | Connection Retention Knob Thread Size (CRKS) | M10 |
| Application | | Profile Milling | | Shank Height (H) | 0.591″ |
| Connection Diameter Machine Side (DCONMS) | 0.701″ | Cutting Diameter Maximum (DCX) | 0.787″ |
| Master Insert Identification (MIID) | RDMW0702M0 |
Product Features
| Family Description | Indexable endmills with TungFlex, carrying buttom inserts of 3.5mm radius | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.243
