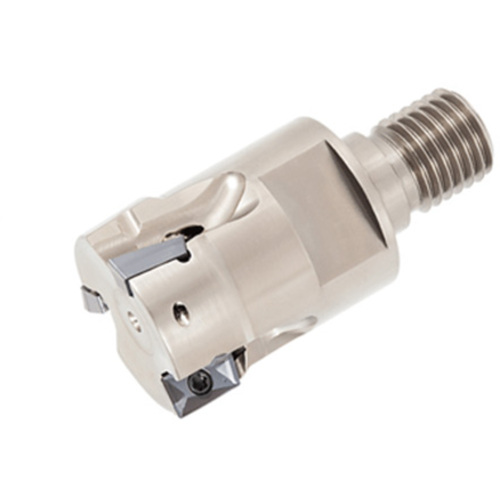

HPO11R025MM12-03
Indexable End Mill; 0.9842″ Dia. × 0.417″ LOC × 0.819″ Shank Dia. × 2.244″ OAL ; 90 Degrees

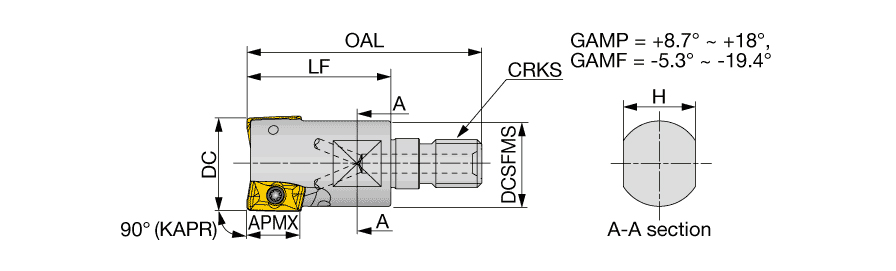

| Cutting Diameter (DC/DCX) | 0.9842″ | Functional Length (LF) | 1.378″ |
| Cutting Diameter (DC) | 0.9842″ | Tool Type | 90 indexable endmills |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.417″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.244″ | Body Material | Steel |
| Application | | Shoulder Milling | | Connection Retention Knob Thread Size (CRKS) | M12 |
| Connection Diameter Machine Side (DCONMS) | 0.819″ | Shank Height (H) | 0.669″ |
| Master Insert Identification (MIID) | AS*T11T3... | Cutting Diameter Maximum (DCX) | 0.9842″ |
Product Features
| Family Description | High precision shoulder square endmills (TungRec) with TungFlex, carrying ASMT/ASGT11 inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.348
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
