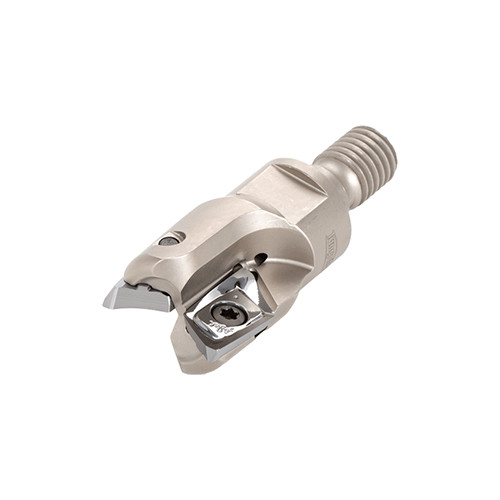

HPXV16M025M12R02
Indexable End Mill; 0.9842″ Dia. × 0.63″ LOC × 2.559″ OAL ; 90 Degrees

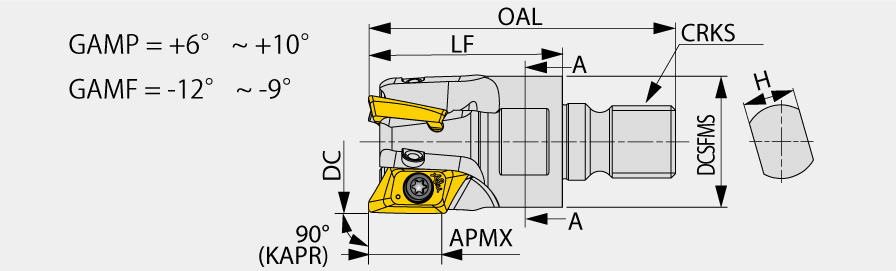

| Cutting Diameter (DC/DCX) | 0.9842″ | Functional Length (LF) | 1.693″ |
| Cutting Diameter (DC) | 0.9842″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.63″ | Body Material | Steel |
| Overall Length (OAL) | 2.559″ | Connection Retention Knob Thread Size (CRKS) | M12 |
| Application | | Shoulder Milling | | Shank Height (H) | 0.669″ |
| Master Insert Identification (MIID) | XVCT160508PEFR-AM | Cutting Diameter Maximum (DCX) | 0.9842″ |
Product Features
| Family Description | Square shoulder mill for high-speed aluminum machining. Modular head with TungFlex threaded adaptation | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
