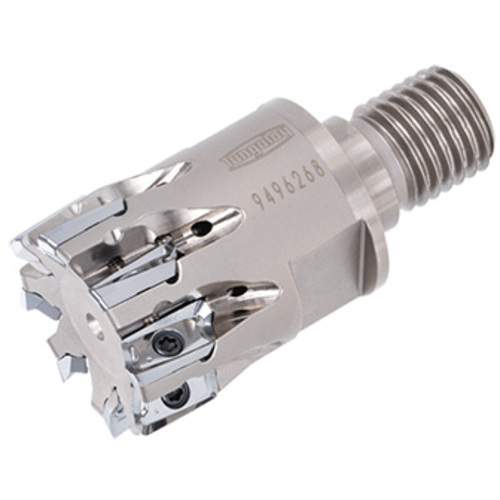

HPAV12M040M16R06
Indexable End Mill; 1.5748″ Dia. × 0.453″ LOC × 2.48″ OAL ; 90 Degrees

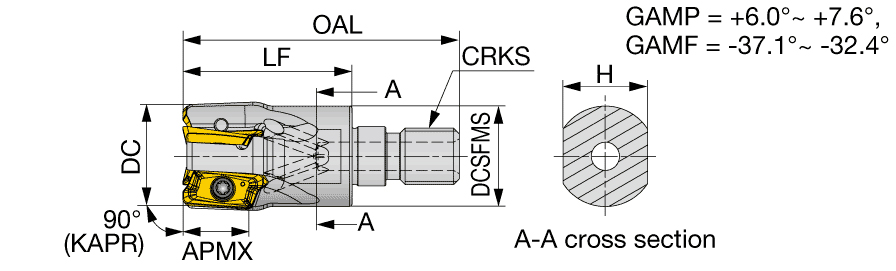

| Cutting Diameter (DC/DCX) | 1.5748″ | Functional Length (LF) | 1.575″ |
| Cutting Diameter (DC) | 1.5748″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 6 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.453″ | Body Material | Steel |
| Overall Length (OAL) | 2.48″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Application | | Shoulder Milling | | Shank Height (H) | 0.866″ |
| Master Insert Identification (MIID) | AVMT120408PDER-MM | Cutting Diameter Maximum (DCX) | 1.5748″ |
Product Features
| Family Description | Square shoulder milling cutter, Modular head with TungFlex threaded adaptation | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0
Related Documentation

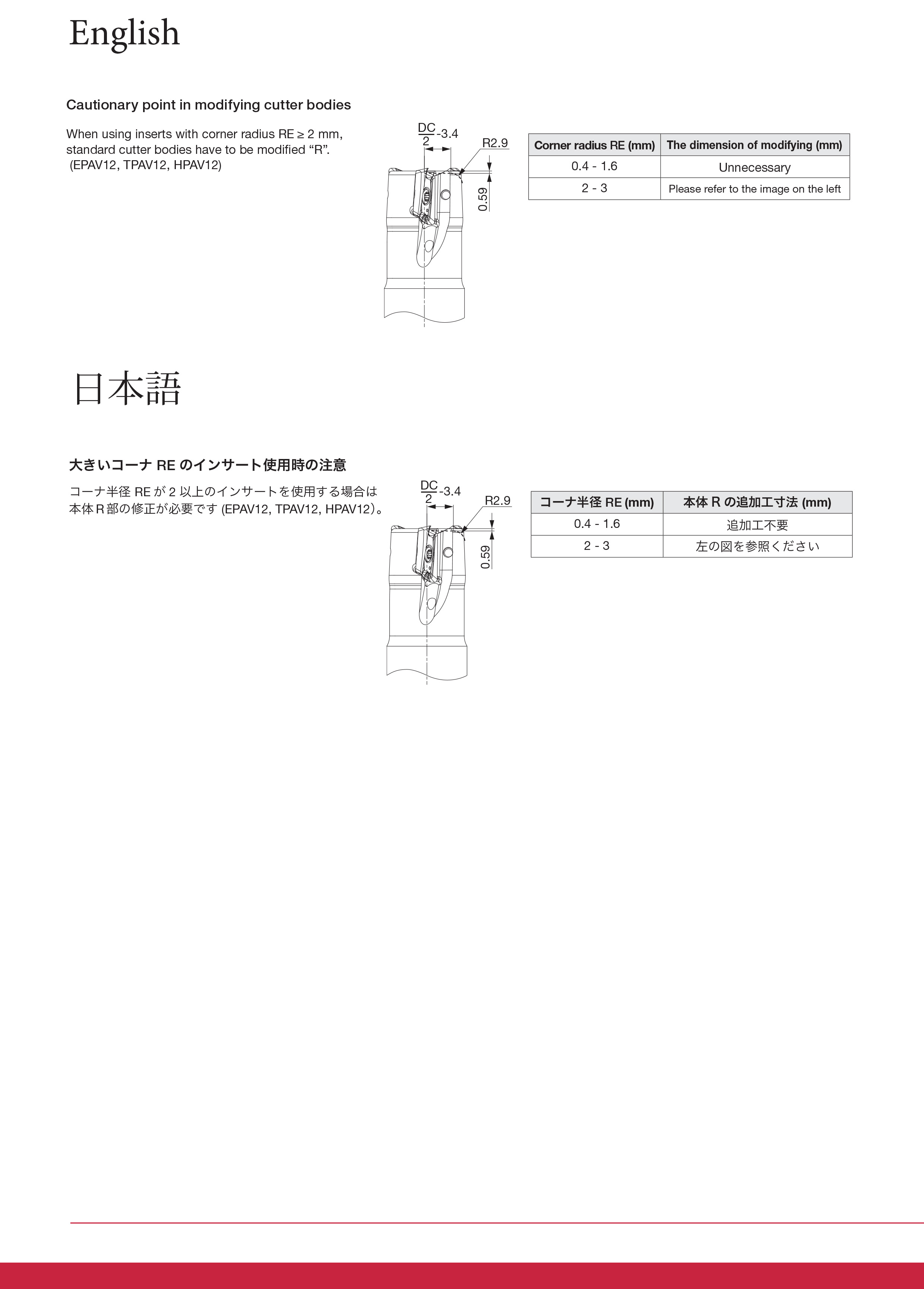

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
