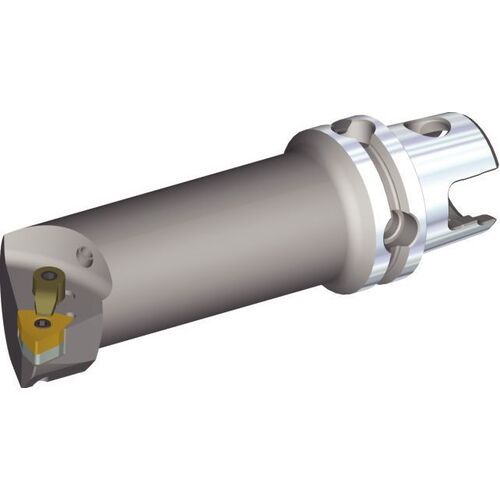

KM50TSS40LMWLNR08 KM50TS BORING BAR STEEL SHANK
Turning Toolholder; 171.95 mm OAL x #50 Shank Dia. × 120.34 mm LH ; Right Hand ; Steel
Additional Tariff Surcharge of 8.5 %
| Protruding Length (LPR) | 120.34 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 171.95 mm | Shank Type | KM |
| Head Length (LH) | 120.34 mm | Rake Angle Axial (GAMP) | -5 Degrees |
| Connection Diameter Machine Side (DCONMS) | #50 | Rake Angle Radial (GAMF) | -10 Degrees |
| Minimum Bore Diameter (DMIN) | 50 mm | Weight of Item (WT) | 3.07985414 |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Master Insert Identification (MIID) | Trigon 80 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
3.0798
