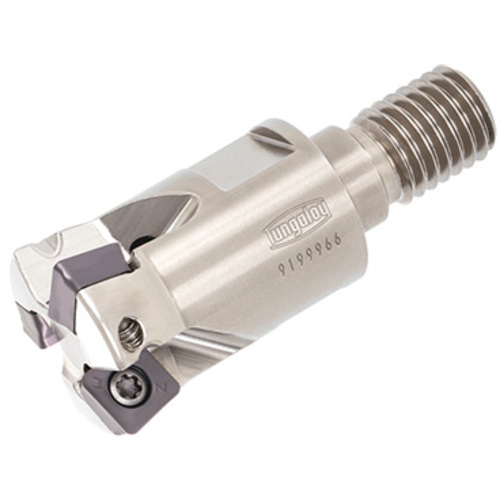

HXSW09M025M12R03
Indexable End Mill; 0.9842″ Dia. × 0.059″ LOC × 0.819″ Shank Dia. × 2.244″ OAL ; 12 Degrees

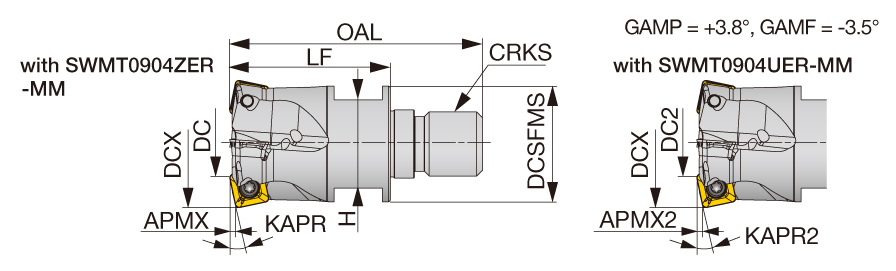

| Cutting Diameter (DC/DCX) | 0.9842″ | Functional Length (LF) | 1.378″ |
| Cutting Diameter (DC) | 0.9842″ | Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 3 | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Depth of Cut Maximum (APMX) | 0.059″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.244″ | Body Material | Steel |
| Application | | High Feed Milling | | Connection Retention Knob Thread Size (CRKS) | M12 |
| Connection Diameter Machine Side (DCONMS) | 0.819″ | Shank Height (H) | 0.669″ |
| Master Insert Identification (MIID) | SWMT0904ZER-MM | Cutting Diameter Maximum (DCX) | 0.9842″ |
Product Features
| Family Description | High-feed milling cutters with 4-corner single sided inserts; Modular head with TungFlex threaded adaptation | Country of Origin | Japan |
| Remarks | APMX may vary with insert type. |
