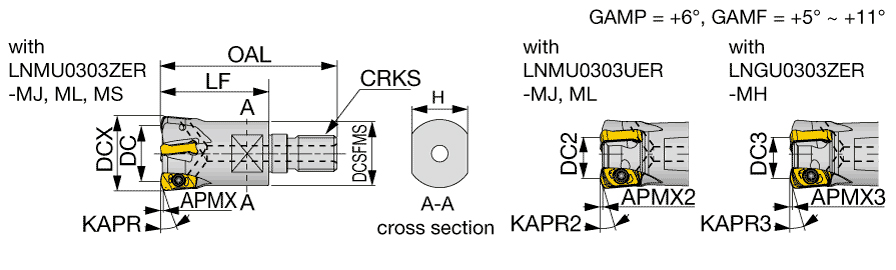

| Cutting Diameter (DC/DCX) | 0.7874″ | Tool Type | 90 indexable endmills |
| Cutting Diameter (DC) | 0.7874″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.039″ | Body Material | Steel |
| Overall Length (OAL) | 1.929″ | Connection Retention Knob Thread Size (CRKS) | M10 |
| Application | | High Feed Milling | | Shank Height (H) | 0.591″ |
| Master Insert Identification (MIID) | LNMU0303ZER-MJ | Cutting Diameter Maximum (DCX) | 0.7874″ |
| Functional Length (LF) | 1.181″ |
Product Features
| Family Description | Super high feed milling endmills with TungFlex (Coolant direct to inserts) | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.240
Related Documentation
The standard cutting conditions table shows the conditions for standard shank type cutters.@Cutting conditions are generally limited by the rigidity and power of the machine and the rigidity of the workpiece. When setting the conditions, start from half of the values of the standard cutting conditions and then increase the value gradually while making sure the machine is running normally.@For DC above 33 mm, slot milling, ramping or contouring is not recommended as chips may be re-cut.
