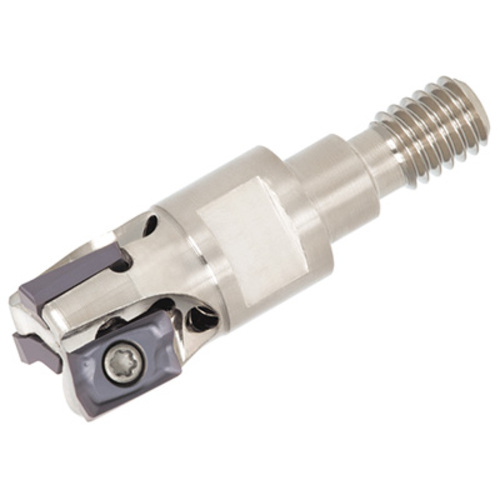

HPAV06M016M08R04
Indexable End Mill; 0.6299″ Dia. × 0.236″ LOC × 0.512″ Shank Dia. × 1.654″ OAL ; 90 Degrees

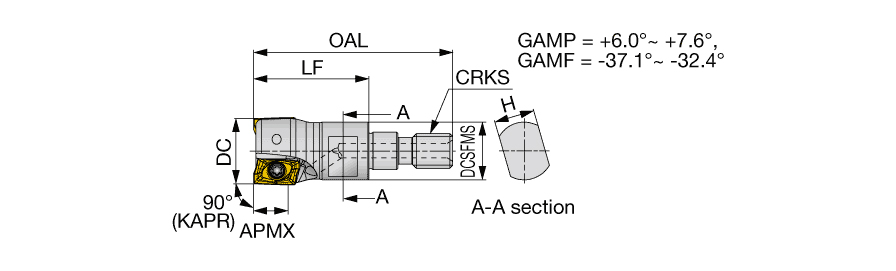

| Cutting Diameter (DC/DCX) | 0.6299″ | Functional Length (LF) | 0.984″ |
| Cutting Diameter (DC) | 0.6299″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.236″ | Body Material | Steel |
| Overall Length (OAL) | 1.654″ | Connection Retention Knob Thread Size (CRKS) | M8 |
| Application | | Shoulder Milling | | Shank Height (H) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 0.512″ | Cutting Diameter Maximum (DCX) | 0.6299″ |
| Master Insert Identification (MIID) | AVGT06... |
Product Features
| Family Description | Mini square shoulder milling cutter, Modular head with TungFlex threaded adaptation | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.190
