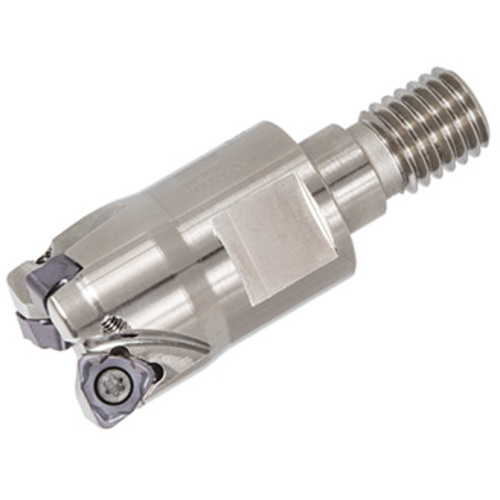

HFWX04M025M12R04

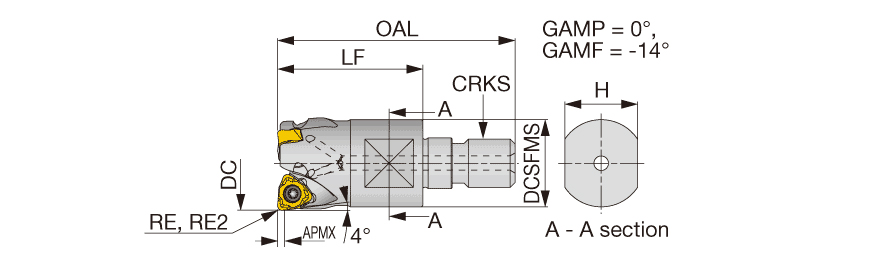

Indexable End Mill; 0.9842″ Dia. × 0.02″ LOC × 0.827″ Shank Dia. × 2.047″ OAL ; 94 Degrees
| Cutting Diameter (DC/DCX) | 0.9842″ | Functional Length (LF) | 1.181″ |
| Cutting Diameter (DC) | 0.9842″ | Tool Cutting Edge Angle (KAPR) | 94 Degrees |
| Cutting Item Count (CICT) | 4 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.02″ | Body Material | Steel |
| Overall Length (OAL) | 2.047″ | Connection Retention Knob Thread Size (CRKS) | M12 |
| Application | | Profile Milling | | Shank Height (H) | 0.669″ |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Cutting Diameter Maximum (DCX) | 0.9842″ |
| Master Insert Identification (MIID) | WXHU04... |
Product Features
| Family Description | Small-radius cutter for finishing operation; Modular head with TungFlex threaded adaptation | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.267
