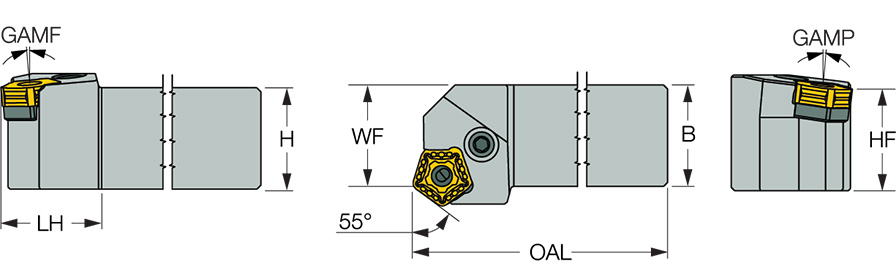

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | POMG 1204##-####-IQ |
| Shank Width (B) | 25 mm | Application | | Ex. 108° pentagonal 55° Approch | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 25 mm | Rake Angle Radial (GAMF) | 7 Degrees |
| Functional Width (WF) | 25 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Lever Lock 55° Approach Angle Tool with a Pentagonal Shaped Insert | Country of Origin | Israel |
Shipping Info
Package Weight
1.722
