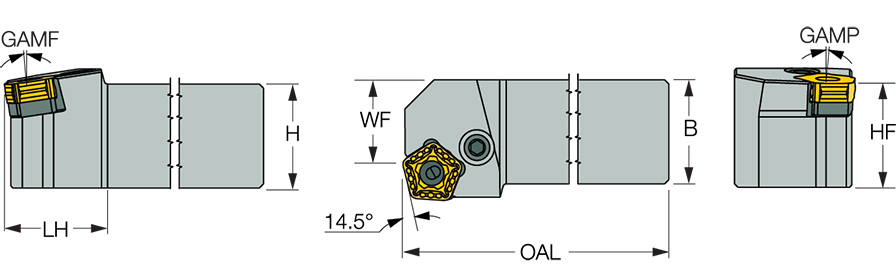

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | POMG 12#########-IQ |
| Shank Width (B) | 25 mm | Application | | Ex. 108° pentagonal 14.5° Approch | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | 8.6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 2.2 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

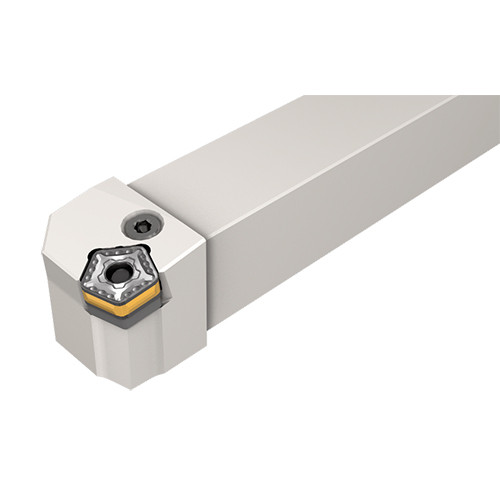

| Family Description | Lever Lock 14.5° Approach Angle Tool with a Pentagonal Shaped Insert | Country of Origin | Israel |
Shipping Info
Package Weight
1.693
