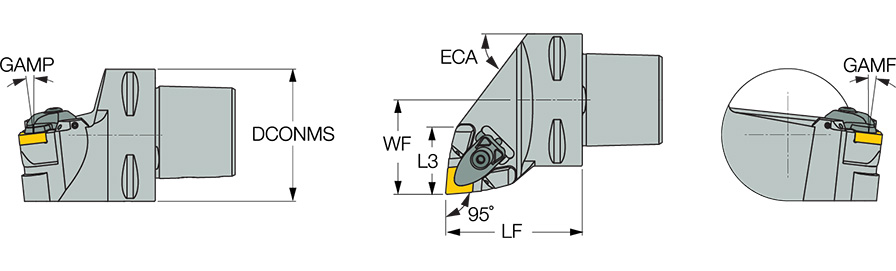

| Overall Length (OAL) | 5.039″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 3.15″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 2.165″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3.15″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 1/2″ | End Chamfer Angle (ECA) | 57 Degrees |
| Cutting Direction (HAND) | Left Hand | Tool Type | Tapered Shank Turning Tools |
| Master Insert Identification (MIID) | CNG 432 | Measurement Type | Inch |
Product Features

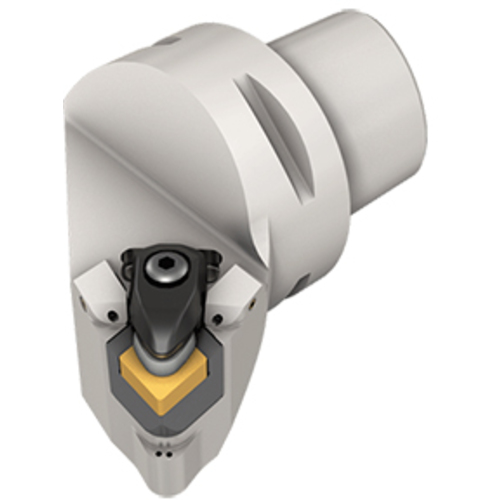

| Family Description | Turning tools with CAMFIX polygon shaped shanks with ceramic indexable round and 80° rhombic inserts mounted on cartridges. | Country of Origin | Israel |
Shipping Info
Package Weight
6.235
