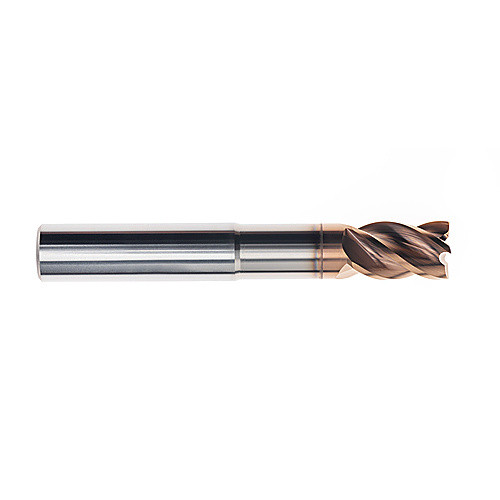

E M934 160CJ025056IL1J
SQ End Mill; 16 mm Dia. × 25 mm LOC × 16 mm Shank Dia. × 110 mm OAL ; 1 mm RE ; 4 FL ; Carbide ; AlTiSiN
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 25 mm | Tool Type | End Mill |
| Overall Length (OAL) | 110 mm | Decimal Equivalent | 0.6299″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
