E M934 080CE013028EG1J

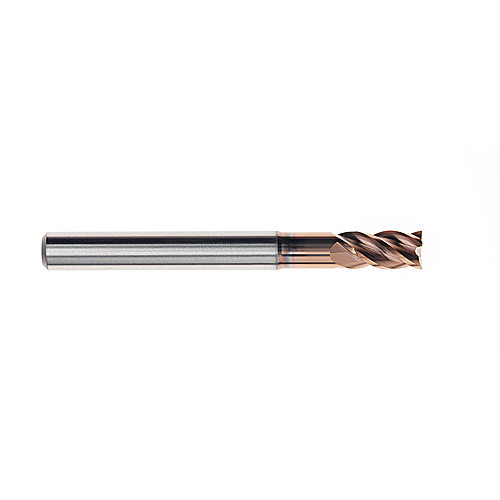

SQ End Mill; 8 mm Dia. × 13 mm LOC × 8 mm Shank Dia. × 75 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; AlTiSiN
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 13 mm | Tool Type | End Mill |
| Overall Length (OAL) | 75 mm | Decimal Equivalent | 0.315″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
