E M934 0500CK064272GM1J

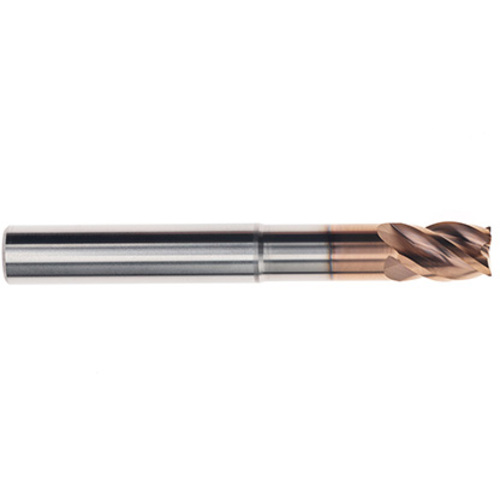

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 6″ OAL ; 0.015″ RE ; 0.015″ RE ; 4 FL ; 4-1/4″ LBS ; Carbide ; AlTiSiN
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 4-1/4″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 6″ | Grade | IM210 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | AlTiSiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
Product Features
| Country of Origin | USA |
