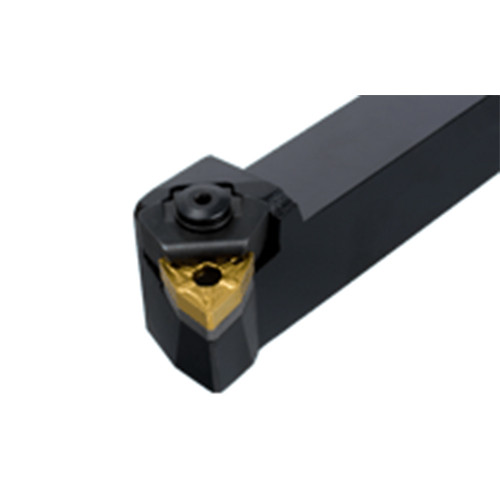

MWLNR 4040R-13W

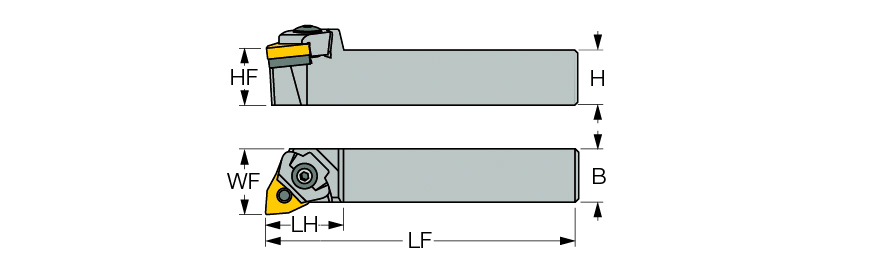

| Shank Height (H) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 40 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 200 mm | Body Material | Steel |
| Head Length (LH) | 45 mm | Cutting Position | External |
| Functional Width (WF) | 50 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | WNMG 1306 | Insert Style | 200mm |
| Application | | Ext. 80° Trigon 95° Approach | |
Product Features
| Family Description | Top wedge lock external tools carrying large trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
5.862
