5N6K-40R01

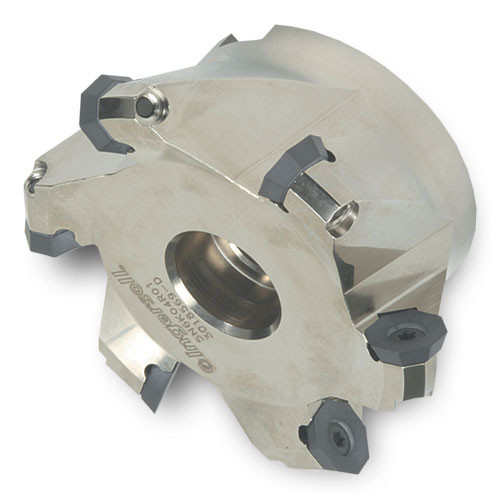

Indexable Face Mill; 4″ Dia. × 1-1/4″ Shank Dia. × 2″ OAL × 0.16″ Max Depth ; 6 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 4″ | Arbor Style | A |
| Cutting Diameter (DC) | 3.62″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.16″ | Application | | Chamfering | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | .16″ Max. depth of cut Insert with 8 indexes | Country of Origin | Germany |
Shipping Info
Package Weight
0.006
