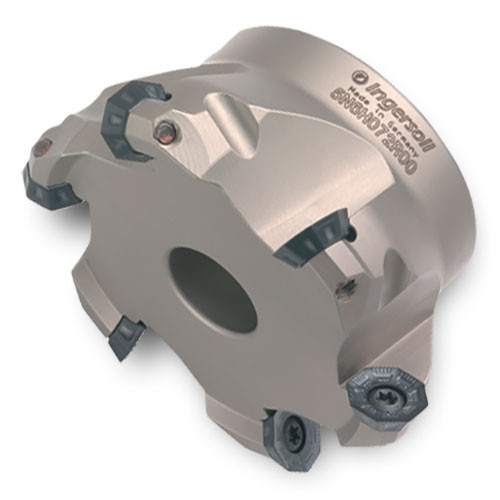

5N6H-30R00
Indexable Face Mill; 3.29″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.13″ LOC ; 7 Inserts ; 45 Degrees
| Cutting Diameter (DC/DCX) | 3.29″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.29″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.13″ | Application | | Chamfering | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1-3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Finishes as good as 63 Ra Octo and Button insert options | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.819
