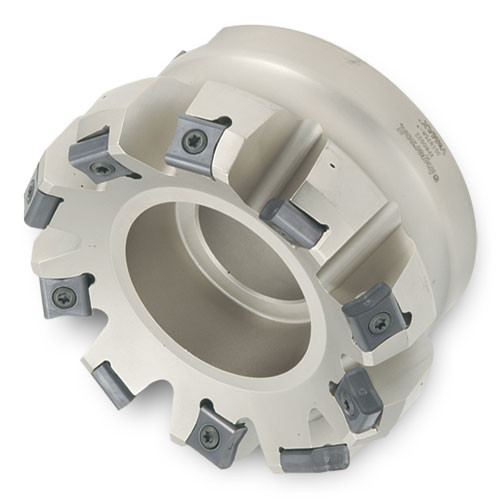

VM6V-03R01
| Cutting Diameter (DC/DCX) | 3.47″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.47″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.15″ | Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | .45″ Max. depth of cut with 4 indexes, 1/2 Effective .15″ Max. depth of cut with 8 indexes, Full Effective | Country of Origin | Usa |
Shipping Info
Package Weight
0.006
