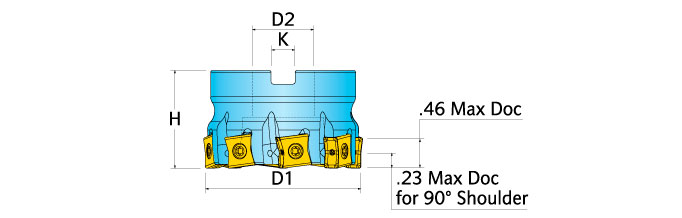

VK5V02L01 FACE MILL
Indexable Face Mill; 2″ Dia. × 1″ Shank Dia. × 1.57″ OAL × 0.827″ LOC ; 6 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HP ADCT 2207PDR |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.827″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.57″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | Cutting Edge Length: .46″, .23″ (4RH/4LH) Insert Corner: .031″, .063″, .125″R and .031″ × 45 deg. chamfer | Country of Origin | USA |
Shipping Info
Package Weight
2.1
