2J1E-30R02

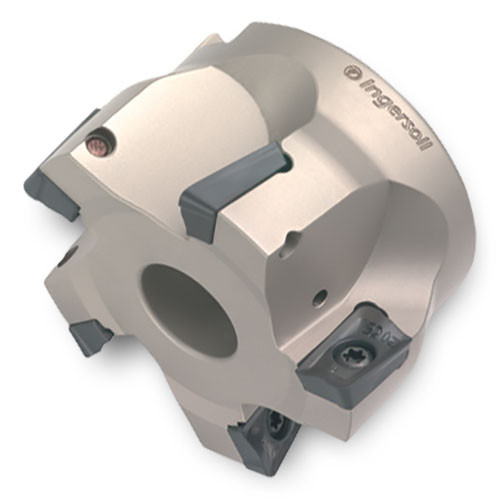

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.66″ LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Ramping Angle Maximum (RMPX) | 1.8 Degrees |
| Cutting Item Count (CICT) | 7 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.66″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1-3/4″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Hub Diameter (DHUB) | 2.48″ | Measurement Type | Inch |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the wiper (WEP) Insert corners: .015″, .031″, .062″, .093″, .125″ R. Use 2J4E for .187″ & .250 R | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
