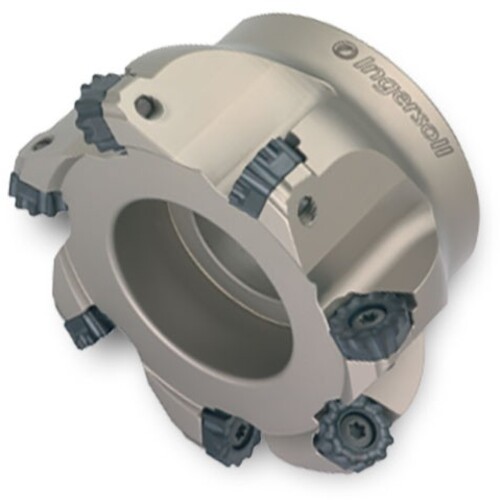

5E6K-06R01
Indexable Face Mill; 6″ Dia. × 2-1/2″ OAL ; 9 Inserts

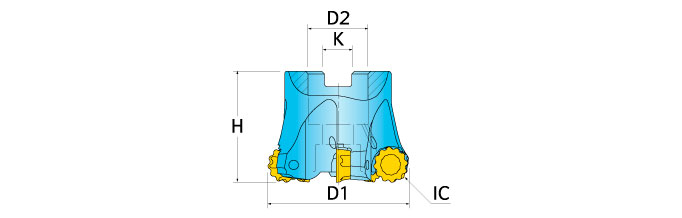

| Cutting Diameter (DC/DCX) | 6″ | Master Insert Identification (MIID) | RCLT16 |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6″ | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.827″ | Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | Effective Diameters 2-6″ Button Insert Inscribed Circle: 12mm and 16mm | Country of Origin | Germany |
