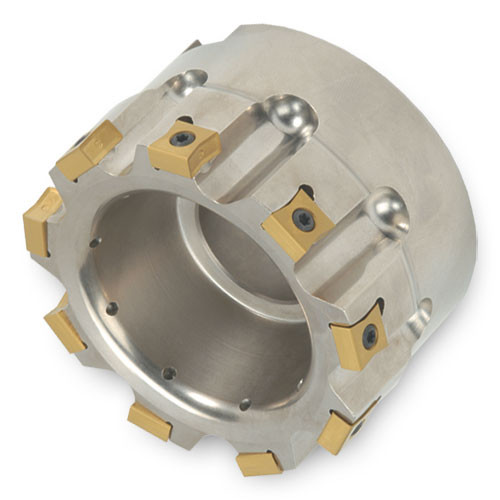

VK6V-03R01
Indexable Face Mill; 3.04″ Dia. × 1″ Shank Dia. × 2-3/8″ OAL × 0.23″ LOC ; 8 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3.04″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 3.04″ | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.23″ | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-3/8″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | Left & right hand cutter bodies Insert corners: .031″, .063″, .125″R & .031″ × 45° | Country of Origin | Usa |
Shipping Info
Package Weight
0.006
