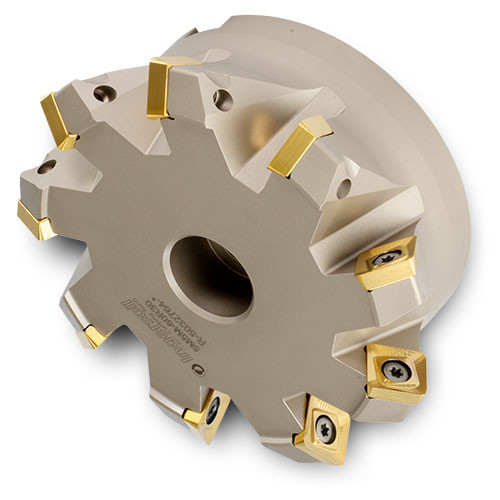

5M5M-60R30
Indexable Face Mill; 6″ Dia. × 1-1/2″ Shank Dia. × 2-1/2″ OAL × 0.306″ LOC ; 9 Inserts ; 30 Degrees
| Cutting Diameter (DC/DCX) | 6″ | Arbor Style | A |
| Cutting Diameter (DC) | 4.885″ | Ramping Angle Maximum (RMPX) | 1.2 Degrees |
| Cutting Diameter Maximum (DCX) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.306″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 30° Mid-feed rougher Multiple insert styles for application flexibility High material removal rates! Extremely free cutting! Excellent performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.023
