5M6P-30R01

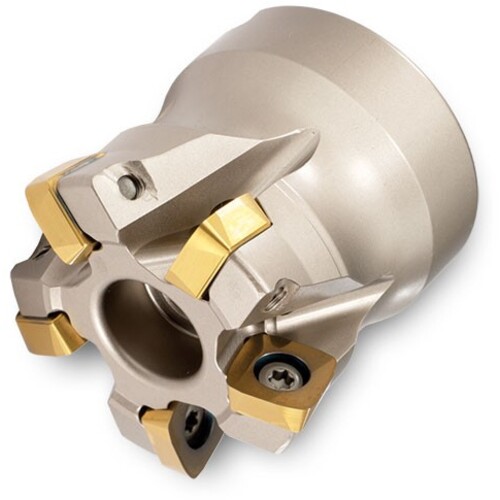

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2″ OAL × 0.078″ LOC ; 6 Inserts ; 12 Degrees
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 2.17″ | Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Diameter Maximum (DCX) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.078″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 12° Hi-feed rougher Seven different insert edge preparations provide application flexibility Extremely free cutting! Excellent hi-feed performance & economy! | Country of Origin | USA |
