5H6G-30R01

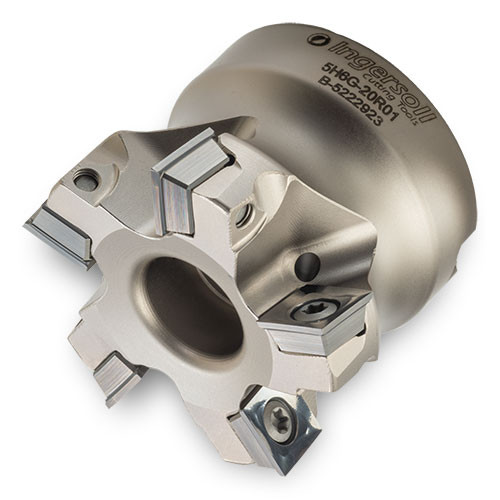

Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 1-3/4″ OAL × 0.41″ LOC ; 8 Inserts
| Cutting Diameter (DC/DCX) | 3″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.41″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Facing | Plunging & Recessing | Shouldering | Slotting | |
| Overall Length (OAL) | 1-3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 2.48″ |
Product Features
| Family Description | 15-32 Ra surface finishes when engaging wiper (WEP) Insert corners: .008″, .020″, .031″, .062″, .093″, .125″ R | Country of Origin | USA |
Shipping Info
Package Weight
0.004
