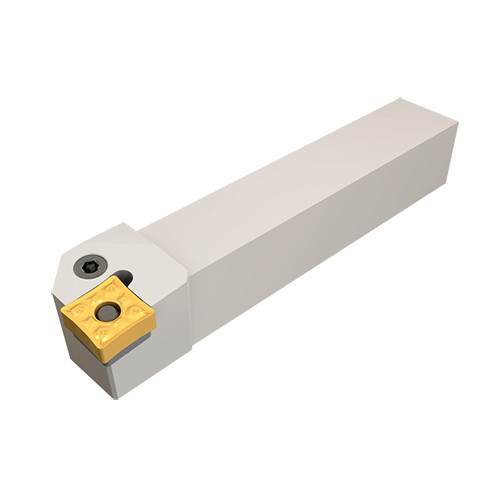

PQFNL 2525M-12

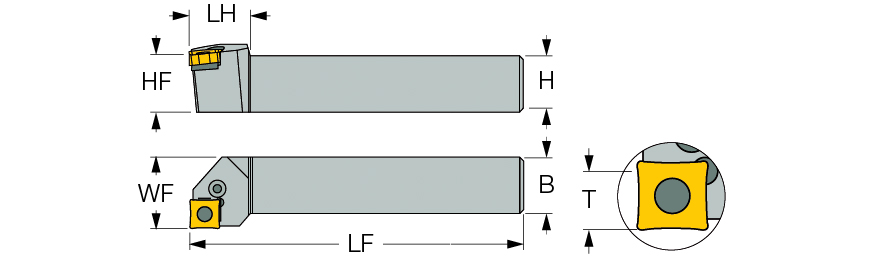

| Shank Height (H) | 25 mm | Application | | Ext. 80° Q#MG 95°Approach Face | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 26 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | QNMG 1204 | Style | SCLCL08-3A |
Product Features
| Family Description | Lever lock face turning tools carrying negative inserts with four 80° corners (AD - short tools for adapter holders). | Country of Origin | Israel |
| Remarks | For more information about T, click on More Info |
Shipping Info
Package Weight
1.689
