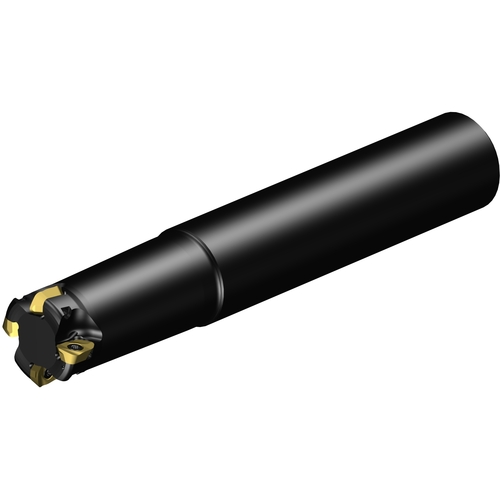

MH20AR025O2506H FACE MILL
Indexable Face Mill; 0.693″ Dia. × 1″ Shank Dia. × 0.031″ LOC ; 4 Inserts ; 15 Degrees
| Cutting Diameter (DC/DCX) | 0.693″ | Usable Length (LU) | 1.969″ |
| Cutting Diameter Maximum (DCX) | 1″ | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.031″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Functional Length (LF) | 5.906″ |
| Ramping Angle Maximum (RMPX) | 3.6 Degrees | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
1.168
