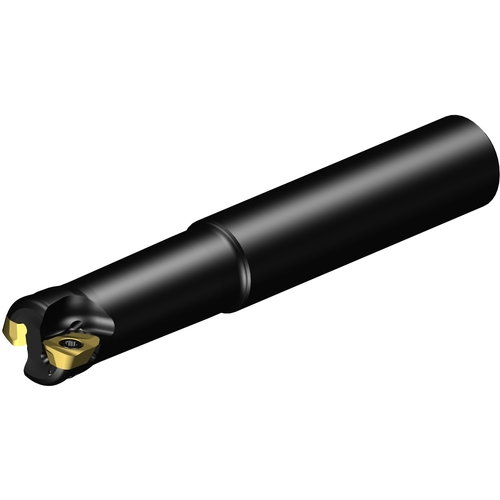

MH20AR016O1606L FACE MILL
Indexable Face Mill; 0.322″ Dia. × 5/8″ Shank Dia. × 0.031″ LOC ; 2 Inserts ; 15 Degrees
| Cutting Diameter (DC/DCX) | 0.322″ | Usable Length (LU) | 1.575″ |
| Cutting Diameter Maximum (DCX) | 5/8″ | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.031″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Functional Length (LF) | 3.937″ |
| Ramping Angle Maximum (RMPX) | 10.1 Degrees | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.276
