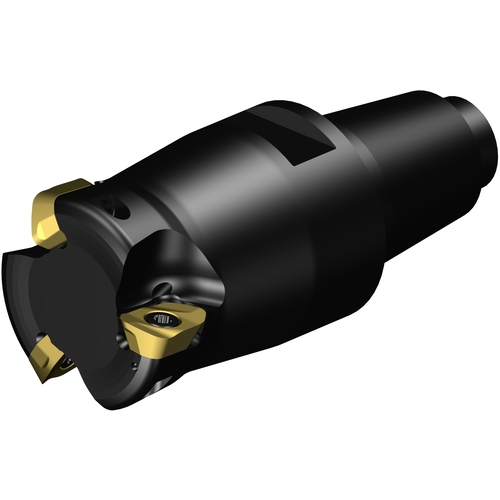

MH20R025EH2506M FACE MILL
Indexable Face Mill; 17.2 mm Dia. × 24.2 mm Shank Dia. × 0.8 mm LOC ; 3 Inserts ; 15 Degrees
| Cutting Diameter (DC/DCX) | 17.2 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 0.8 mm | Functional Length (LF) | 35 mm |
| Connection Diameter Machine Side (DCONMS) | 24.2 mm | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Ramping Angle Maximum (RMPX) | 3.7 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.282
