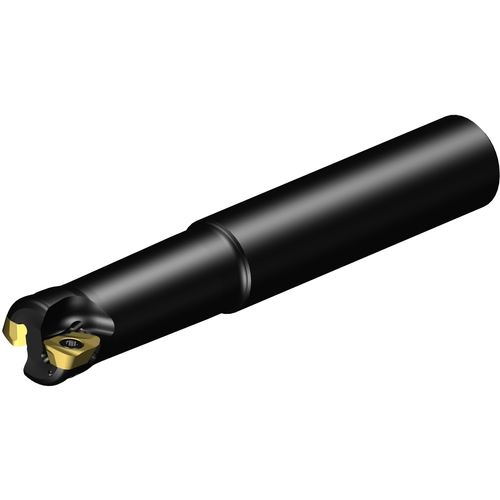

MH20R016A1606L FACE MILL
Indexable Face Mill; 8.2 mm Dia. × 16 mm Shank Dia. × 0.8 mm LOC ; 2 Inserts ; 15 Degrees
| Cutting Diameter (DC/DCX) | 8.2 mm | Usable Length (LU) | 40 mm |
| Cutting Diameter Maximum (DCX) | 16 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 100 mm |
| Ramping Angle Maximum (RMPX) | 9.5 Degrees | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.342
