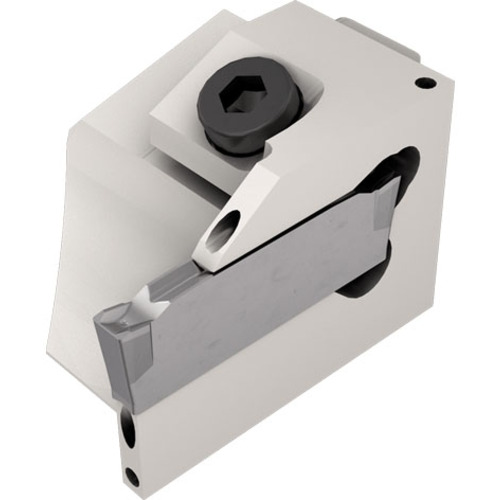

NQCH16-DGTR-1.2D22SH-JHP
Parting Off Holder; 1.134″ OAL × 0.047″ CW Min. × 0.047″ CW Max. × 0.795″ OAH ; Steel
| Cutting Width Minimum (CWN) | 0.047″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.047″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 1.134″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.866″ |
| Head Length (LH) | 0.787″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 0.795″ | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 0.787″ |
Product Features
| Family Description | Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head except NQCH12R/16R.. heads. |
Shipping Info
Package Weight
54
