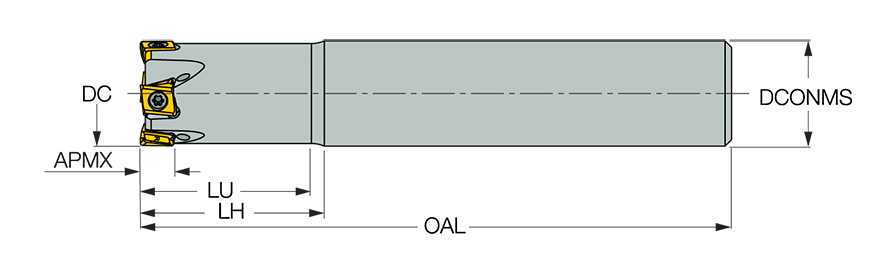

T490 ELN D25-6-C25-05
Indexable End Mill; 25 mm Dia. × 4.6 mm LOC × 25 mm Shank Dia. × 120 mm OAL × 28.5 mm LU ; 6 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 6 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 4.6 mm | Usable Length (LU) | 28.5 mm |
| Overall Length (OAL) | 120 mm | Flute Count (NOF) | 6 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0.4 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | T490 LNMT 0502PNR-RD | Body Material | Steel |
Product Features
| Family Description | 90° Endmills Carrying Tangentially Clamped Inserts with 4 Helical Cutting Edges | Country of Origin | Israel |
| Remarks | For alternative torx hand driver click on More Info |
Shipping Info
Package Weight
447
