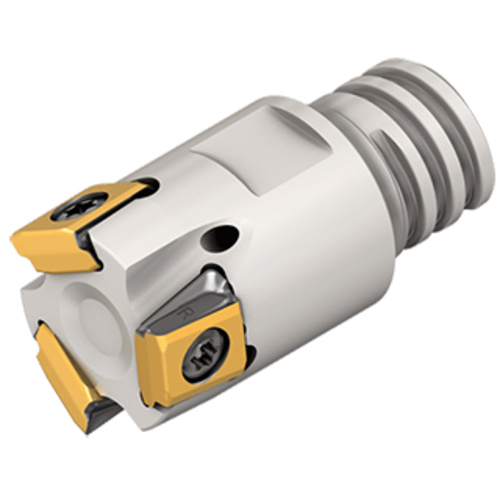

T490 ELN D12-3-MMT08-05
Indexable End Mill; 12 mm Dia. × 4.6 mm LOC × 11 mm Shank Dia. × 22 mm OAL ; 3 FL ; 90 Degrees

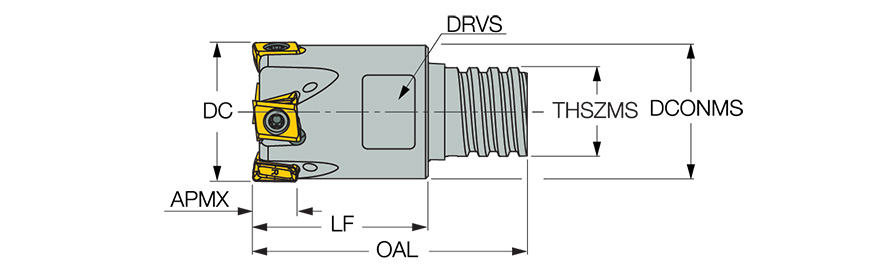

| Cutting Diameter (DC/DCX) | 12 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 12 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 10 mm |
| Depth of Cut Maximum (APMX) | 4.6 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 22 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | T490 LNMT 0502PNR-RD | Body Material | Steel |
| Functional Length (LF) | 14.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° Endmills with a MULTI-MASTER Threaded Adaptation Carrying Tangentially Clamped Inserts with 4 Helical Cutting Edges | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For alternative torx hand driver click on More Info. |
Shipping Info
Package Weight
61
