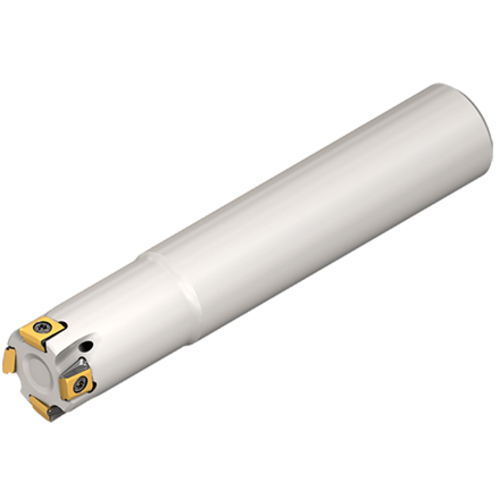

T490 ELN D.75-5-W.75-05
Indexable End Mill; 3/4″ Dia. × 0.181″ LOC × 3/4″ Shank Dia. × 3-1/2″ OAL × 0.94″ LU ; 5 FL ; Weldon Shank ; 90 Degrees

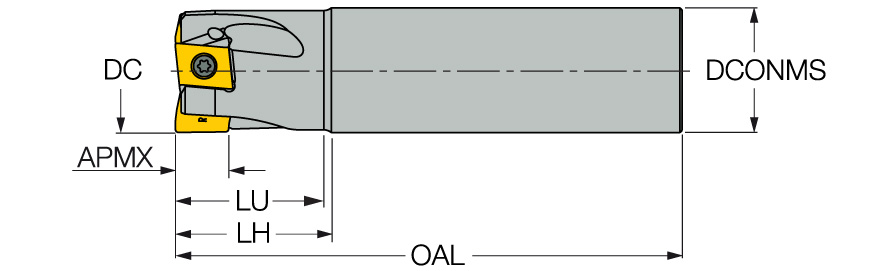

| Cutting Diameter (DC/DCX) | 3/4″ | Functional Length (LF) | 3-1/2″ |
| Cutting Diameter (DC) | 3/4″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 0.94″ |
| Depth of Cut Maximum (APMX) | 0.181″ | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 3-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNMT 0502PNR-RD | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 1″ |
Product Features
| Family Description | 90° endmills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .181″ long cutting edges (HELITANGT490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
224
